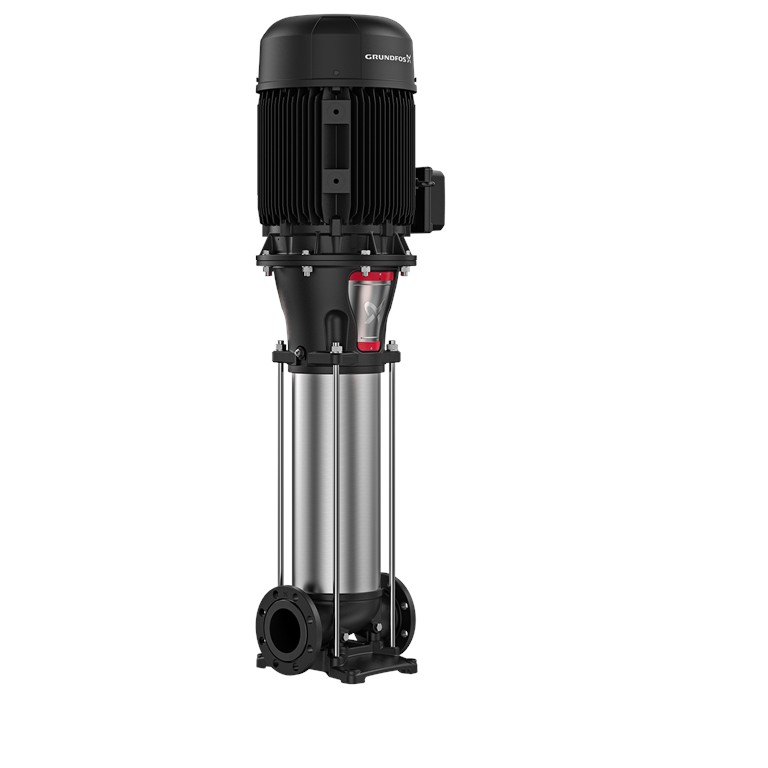

Grundfos CR 155-4-1 High Pressure Multistage Vertical Stainless Steel Centrifugal Water Pump

MOQ:1 Set

Price:Negotiable

Standard Packaging:Standard Export Plywood Case or Carton

Delivery Period:1-2 weeks

Payment Method:L/C, T/T, Western Union

Supply Capacity:1000 Sets per Month

Click to chat with us online

Product Specifications

Place of Origin	China
Brand Name	Water Clean Pump
Liquid Conveyed	Water
Liquid Temperature During Operation	20 °c
Liquid Temperature Range	-20 .. 120 °c
Rated Flow Rate	155 M³/H

CR 155-4-1 A-F-A-E-HQQE Vertical multistage centrifugal pump, with the inlet and outlet located on the same horizontal plane (in-line design). The pump head and base are made of cast iron, while all other parts in contact with the liquid are made of stainless steel. The Grundfos cartridge mechanical seal enhances the machine's reliability and operational safety, and simplifies maintenance. Electrical energy is transmitted through a split coupling. Pipe connections are achieved via DIN flanges. An asynchronous motor (three-phase) equipped with a cooling fan and a base frame is installed on the pump.

Seawater Desalination

Surface Water Intake

Drinking Water Treatment

Municipal Water Transmission and Distribution

Irrigation

Solar-Powered Water Solutions

Residential Community and Building Water Supply

Packing Details	Standard Export Wooden Case / Carton with Waterproof Film
Port	Tianjin / Beijing, China
Lead Time	3-15 Working Days (depending on quantity)
